Compact, High-Precision Pressure Control for Critical Applications

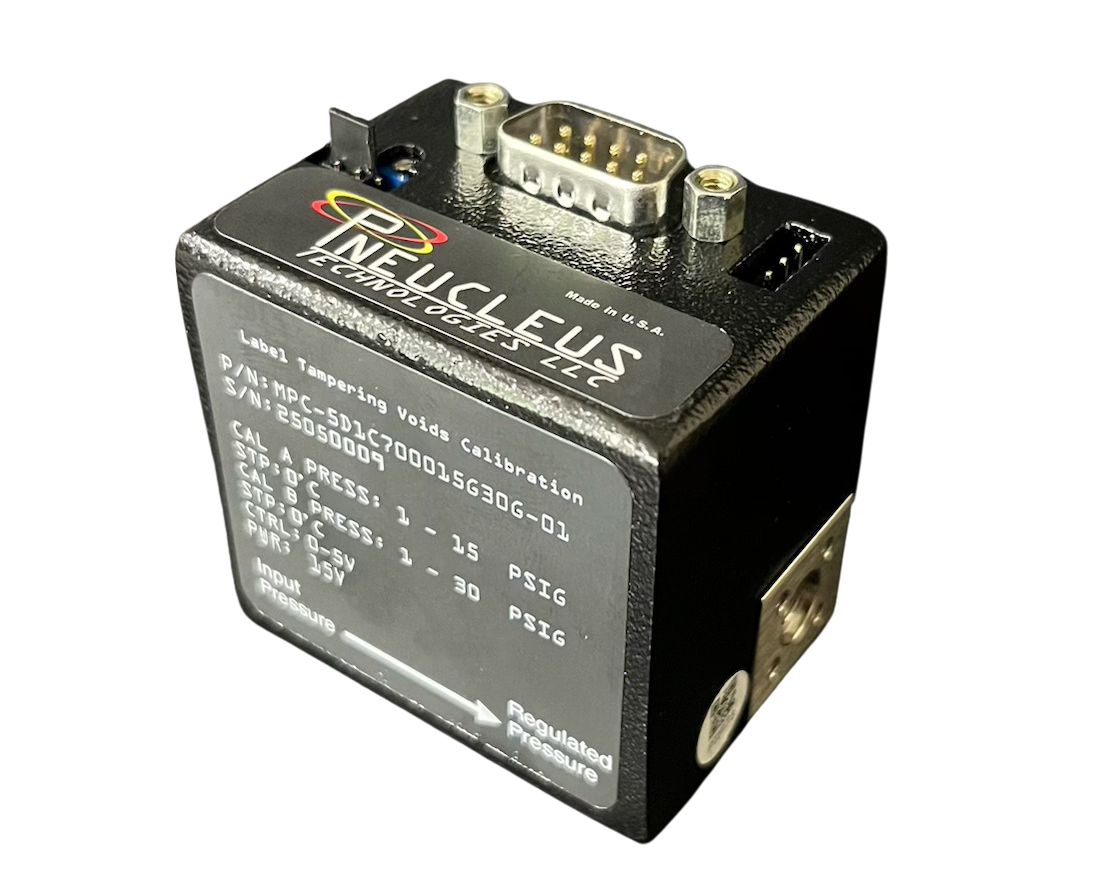

The Pneucleus MicroPC™ Pressure Controller delivers precision pressure regulation in a compact, reliable package. With customer-specified pressure ranges up to 100 psiA, it ensures exceptional accuracy, repeatability, and stability, making it ideal for laboratory research, medical systems, industrial automation, and aerospace applications.
Whether for low-volume analytical setups or critical production systems, the MicroPC combines advanced sensor technology, electronic valve control, and compact design to deliver consistent results every time.
Features & Benefits
- Pressure Range: Customer Specified Up to 100 psiA
- Linearity Error: 0.5 – 1.0% FS
- Repeatability: ± 0.08% FS
- Response Time: Dependent on Volume Size of Pressue Vessel and the Size of Valve… (Consult Factory)
PRODUCT SPECIFICATIONS (Standard)
NOTE: Ask Us About Specification Enhancement
| Performance | |
|---|---|
| Pressure Ranges | Any Customer Specified Flow Range Up to 100 psiA |
| Linearity | ± 0.5 - 1.0% of Full Scale (Typical) |
| Repeatability & Hysteresis | ± 0.08% FS |
| Response Time | Dependent on Volume Size of Pressue Vessel and the Size of Valve… (Consult Factory) |
| Temperature Coefficient | Temperature Compensated from 0-85oC |
| Fluid Requirements: | |
| Calibration Gas | Any, Non-Corrosive, Customer Specified |
| Internal Leakage | 10-5 @ 1, 30 and 100 psi (He) |
| External Leakage | 2 x 10-6 sccm (He) |
| Electrical Requirements: | |
| Input Voltage (single supply) | 12V (+10% - 3%), 15V (+/- 10%), 24V (+/-10%) |
| Power Consumption | 2.0 Watts Maximum |
| Control & Output Voltage/Signal | 0-5 VDC, 0-10VDC, 1-5 VDC, 4-20mA, RS232 (Addressable) |
| Environmental Requirements: | |
| Operating Ambient Temp. | 0-50ºC (Standard) Ask About Enhancement |
| Storage Temperature | -40 to 70ºC |
| Humidity Range | 5% - 95% (Relative, non-condensing) |
| Nominal Calibration Temperature | 20ºC |
| Mechanical Configuration: | |
| Input/Output Ports | 10-32 Female Thread |
| Dimensions | L: 2.04” W: 1.50” H: 2.11” |
| Weight | 7.9 oz |
| Construction (wetted materials): | |
| Manifold | Nickel Plated Aluminum |
| O-Rings | Fluorocarbon (Viton®), others at additional cost |
| Valve Components | Brass 360, AISI 300 series, 430 FR Stainless Steel |
| Pressure Sensor | Ceramic (non-out gassing), Silicon, Silicon Nitrite Gold, Aluminum Oxide Epoxy Sealant, Fluorocarbon (Viton®), Polythermide |
How MicroPC Pressure Controllers Work
The MicroPC uses high-precision electronic sensors and electronically controlled proportional valves to maintain the desired pressure setpoint:
- Pressure Sensing: Ceramic-based, low-outgassing sensors continuously monitor system pressure with ±0.08% FS repeatability.
- Valve Control: Electronically actuated valves make fine adjustments to maintain stability, even under fluctuating conditions.
- Feedback Loop: Temperature compensation (0–85°C) ensures that readings remain accurate, while dual-range capabilities provide precision at both low and high pressures.
Pro Tip: Matching the MicroPC to your system’s pressure vessel size and valve capacity guarantees optimal response times and performance. Smaller systems respond faster, while larger volumes stabilize efficiently.
Unlike traditional mechanical regulators, the MicroPC offers repeatable, digitally compatible pressure control, ensuring your system maintains consistent results across multiple cycles and setups.
What Sets the MicroPC Apart in Pressure Control
- Compact, Space-Saving Design: At just 2.04” × 1.50” × 2.11” and 7.9 oz, it integrates easily into lab or industrial systems.
- High Precision & Repeatability: ±0.08% FS repeatability and ±0.5–1.0% FS linearity error for consistent results.
- Flexible Signal Options: Analog and digital outputs including 0–5 VDC, 0–10 VDC, 1–5 VDC, 4–20 mA, and RS-232.
- Robust Construction: Nickel-plated aluminum manifolds, stainless steel valve components, and fluorocarbon (Viton®) O-rings ensure durability and long-term reliability.
- Environmental Stability: Temperature-compensated for operation up to 85°C, humidity 5–95% RH, and storage from -40–70°C.
- Minimal Leakage: Internal 10⁻⁵ @ 1, 30, 100 psi (He) and external 2 × 10⁻⁶ sccm (He).
The MicroPC turns technical specifications into tangible performance advantages, helping engineers maintain precise pressure in critical processes without compromise.
Applications of MicroPC Pressure Controllers
- Semiconductor & Electronics Manufacturing: Constant, repeatable pressure control for sensitive processes.
- Laboratory Pressure Testing & Research: Reliable setpoint management for calibration and experimentation.
- Medical & Pharmaceutical Equipment: Ensures patient safety and product quality through consistent pressure regulation.
- Aerospace Component Testing: Maintains precision under challenging environments and extreme conditions.
- Industrial Automation: Integrates with PLCs and control systems for precise process regulation.
By enabling consistent performance across these sectors, the MicroPC empowers engineers to meet accuracy, safety, and process repeatability requirements.
Things to Consider While Choosing MicroPC
1. What pressure range do you require?
Choose full-scale 1.5–2× your maximum expected pressure. Dual-range options are available for enhanced low-pressure resolution.
2. Which gases will you handle?
Standard calibration with non-corrosive gases.
3. What are your integration needs?
Analog, digital, or RS-232? MicroPC supports multiple signals for seamless system integration. Compact footprint simplifies retrofits and new designs.
Still confused? Contact us to select the optimal configuration for your system.
Why Choose Pneucleus MicroPC™
- Engineer-Focused Design: Combines precision, compactness, and reliability for demanding applications.
- Customizable Solutions: Adjust pressure ranges, gas compatibility, signal interfaces, and environmental tolerances.
- Trusted Expertise: Backed by Pneucleus’ experience in high-precision pressure management across industries.
Request a quote or speak to an engineer today to explore custom MicroPC solutions for your application.
Frequently Asked Questions
How does the MicroPC differ from traditional pressure regulators?
Mechanical regulators provide broad adjustments; MicroPC uses electronic sensors and valves for precise, repeatable control, compatible with analog and digital systems.
Which gases are compatible?
Standard non-corrosive gases are compatible with the device.
Is the MicroPC suitable for compact systems?
Yes. Its small size and lightweight design allow seamless integration in lab, medical, and industrial systems.
What maintenance is required?
Minimal: routine visual inspections, annual calibration checks, occasional leak testing. No internal servicing needed during the warranty period.
