Precision Pressure Control for Two Independent Zones

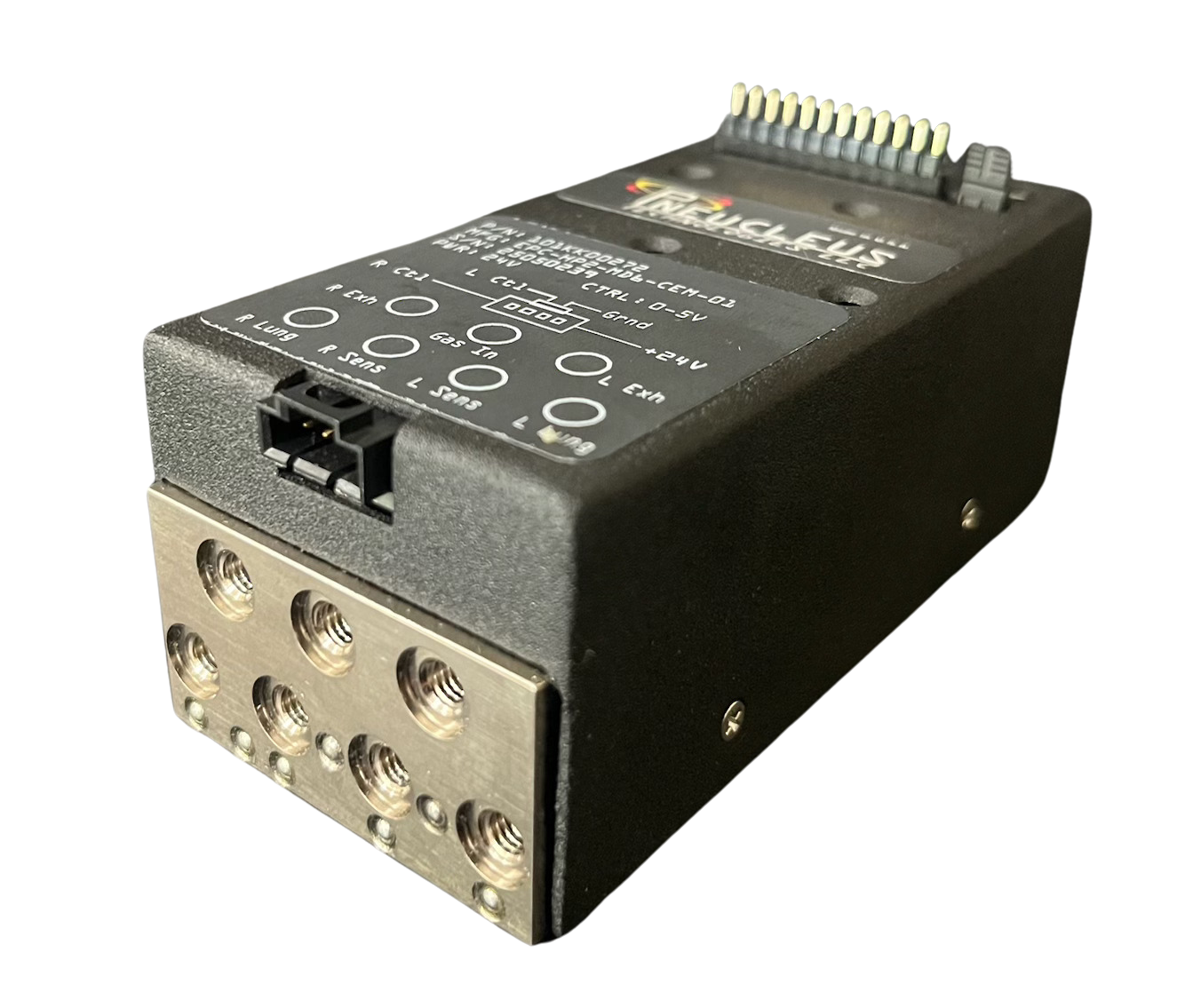

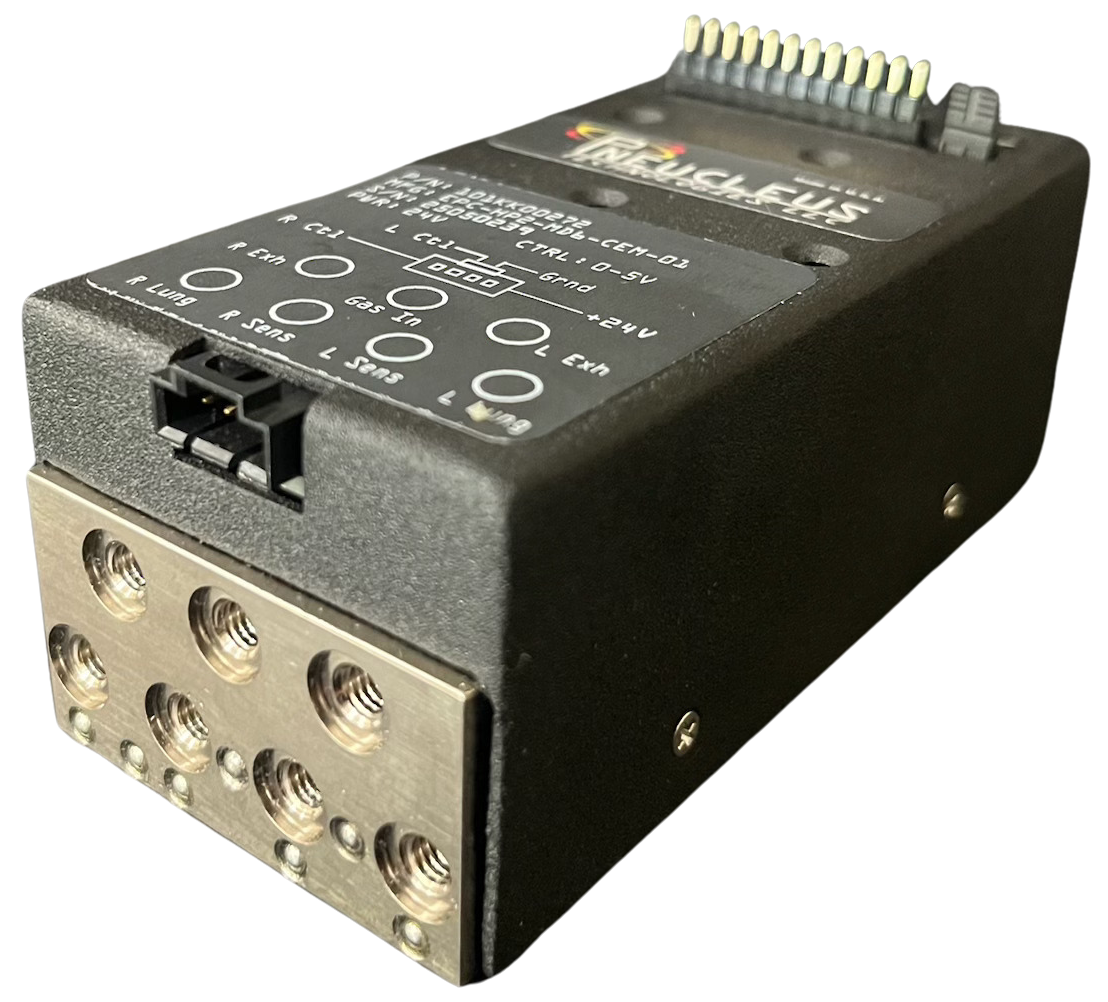

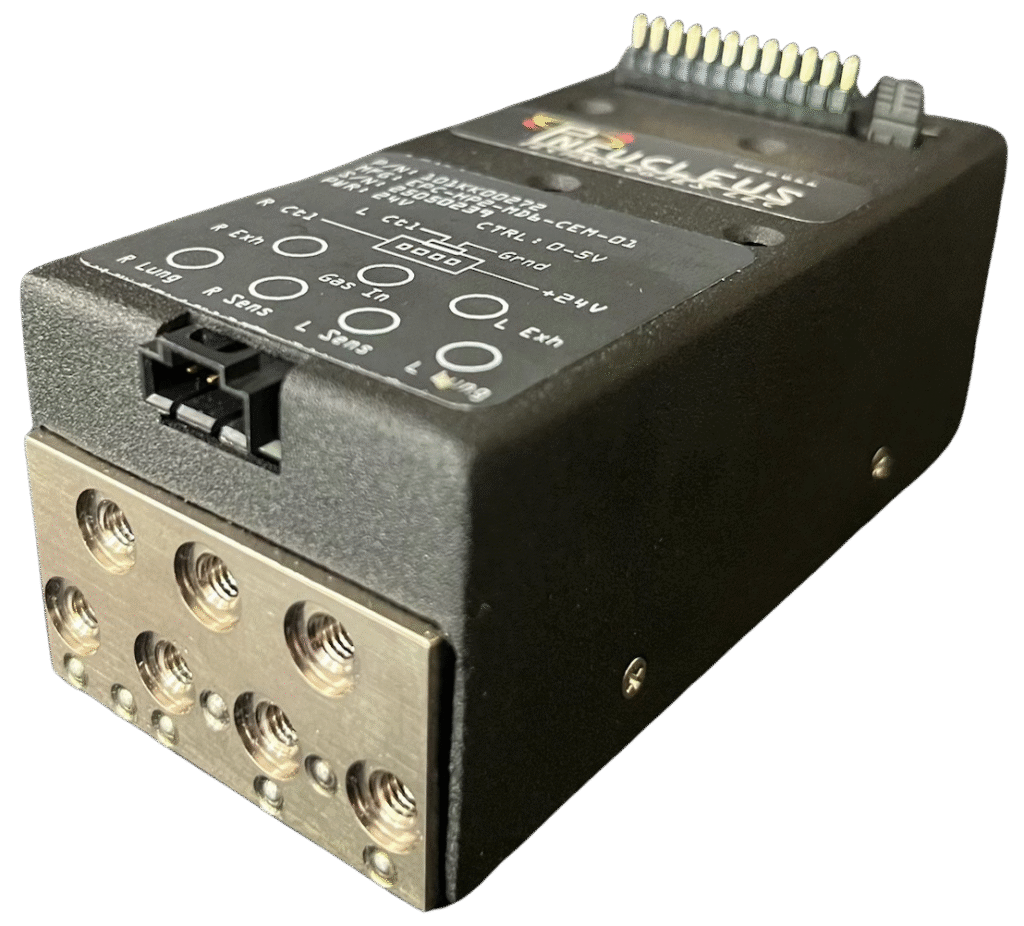

The Pneucleus DoublePC™ pressure controller delivers laboratory-grade precision and reliability in a single, compact unit, enabling simultaneous regulation of two independent pressure zones. Engineered for analytical instrumentation, semiconductor fabrication, thin-film deposition, and advanced industrial processes, the DoublePC ensures accurate, repeatable pressure control where failure is not an option.
Features & Benefits
- Pressure Range: Customer Specified Up to 100 psiA
- Linearity Error: 0.5 – 1.0% FS
- Repeatability: ± 0.08% FS
- Response Time: Dependent on Volume Size of Pressue Vessel and the Size of Valve… (Consult Factory)
PRODUCT SPECIFICATIONS (Standard)
NOTE: Ask Us About Specification Enhancement
Performance | |
---|---|
Pressure Ranges | Any Customer Specified Flow Range Up to 100 psiA |
Linearity | ± 0.5 - 1.0% of Full Scale (Typical) |
Repeatability & Hysteresis | ± 0.08% FS |
Response Time | Dependent on Volume Size of Pressue Vessel and the Size of Valve (Consult Factory) |
Temperature Coefficient | Temperature Compensated from 0-85oC |
Fluid Requirements: | |
Calibration Gas | Any, Non-Corrosive, Customer Specified |
Internal Leakage | 10-5 @ 1, 30 and 100 psi (He) |
External Leakage | 2 x 10-6 sccm (He) |
Electrical Requirements: | |
Input Voltage (single supply) | 12V (+10% - 3%), 15V (+/- 10%), 24V (+/-10%) |
Power Consumption | 4.0 Watts Maximum |
Control & Output Voltage/Signal | 0-5 VDC, 0-10VDC, 1-5 VDC, 4-20mA, RS232 (Addressable) |
Environmental Requirements: | |
Operating Ambient Temp. | 0-50ºC (Standard) Ask About Enhancement |
Storage Temperature | -40 to 70ºC |
Humidity Range | 5% - 95% (Relative, non-condensing) |
Nominal Calibration Temperature | 20ºC |
Mechanical Configuration: | |
Input/Output Ports | 10-32 Female Thread |
Dimensions | L: 4.13” W: 2.00” H: 1.65” |
Weight | 16.7 oz |
Construction (wetted materials): | |
Manifold | Nickel Plated Aluminum |
O-Rings | Fluorocarbon (Viton®), others at additional cost |
Valve Components | Brass 360, AISI 300 series, 430 FR Stainless Steel |
Pressure Sensor | Ceramic (non-out gassing), Silicon, Silicon Nitrite Gold, Aluminum Oxide Epoxy Sealant, Fluorocarbon (Viton®), Polythermide |
Why Dual-Channel Architecture Transforms Pressure Control
Traditional multi-controller setups require multiple units, complex wiring, and synchronization, increasing cost and risk. The DoublePC™ consolidates all control into one intelligent unit, offering:
- True Dual-Zone Regulation: Two fully independent pressure channels with separate setpoints.
- Space-Optimized Design: Up to 70% smaller footprint compared to dual single-channel controllers.
- Single Point of Control: Eliminates inter-unit communication failures for enhanced reliability.
- Streamlined Integration: Unified power supply and communication interface simplifies system setup.
- Lower Total Cost of Ownership: Reduced hardware, maintenance, and installation expenses.
How DoublePC Benefits Your Process
- Enhanced Accuracy: ±0.08% FS repeatability ensures consistent results.
- Reduced Downtime: Ultra-low internal and external leakage protects your process.
- Flexible Integration: Single unit controls two zones, minimizing wiring and rack space.
- Scalable Solutions: Dual-range capability adapts to low-pressure precision and high-pressure requirements.
- Process Confidence: Temperature-compensated sensors maintain stability in fluctuating environments.
Applications of DoublePC™
- Mass Spectrometry: Maintain ±0.08% repeatability for reference and sample gas.
- Gas Chromatography: Independent column and carrier gas control improves separation.
- Leak Detection: Ultra-low 2 × 10⁻⁶ sccm external leakage preserves calibration.
- CVD & Thin-Film Deposition: Precise carrier and precursor gas regulation ensures uniform coatings.
- Plasma Etching: Stable chamber pressures produce repeatable etch profiles.
- Advanced Packaging: Dual channel forming gas and evacuation control for wire bonding.
- Materials Science & Research: Multi-stage pressure profiles for complex synthesis.
- Ultra-High Vacuum Systems: Bakeable, low-outgassing sensors maintain UHV integrity.
Important Factors to Identify Your Ideal DoublePC Model
What pressure ranges do you need?
Choose full-scale 1.5–2× above maximum expected pressure. Dual-range options provide high resolution at low pressures and extended high-pressure control.
Which gases will you handle?
Standard: Non-corrosive (N₂, O₂, He, Ar, H₂, Air)
What environment are you operating in?
- Standard lab or industrial setups → compact dual-channel controller
- High vacuum / UHV → bakeable sensor options and ultra-low outgassing materials
Still unsure? Talk to us to ensure the best configuration for your system.
Why Choose Pneucleus DoublePC™
Pneucleus brings engineer-driven design with real-world performance:
- Dual-channel precision in one compact unit
- Superior stability and repeatability ±0.08% FS
- Reduced footprint, fewer components, lower maintenance
- Customizable to unique pressure ranges, gases, and interfaces
Custom solutions available. Need special calibration, pressure ranges, or communication protocols? Our engineering team can provide a free feasibility assessment within 48 hours.
Frequently Asked Questions
How do I select the optimal pressure range?
Use your maximum expected working pressure plus 20–30% margin. Dual-range options are available for low/high resolution requirements.
What maintenance is required?
Minimal: routine visual inspection, annual calibration checks, occasional leak testing. Internal servicing is not needed during warranty.
Is it suitable for ultra-high vacuum (UHV)?
Yes. Low-outgassing ceramic sensors, minimal internal volume, and 2 × 10⁻⁶ sccm external leakage make it ideal. Bakeable options are available for degassing.
Can the controller be customized?
Yes. Options include extended pressure ranges, modified wetted materials, dual-gas calibration, custom communication protocols, and temperature enhancements.
